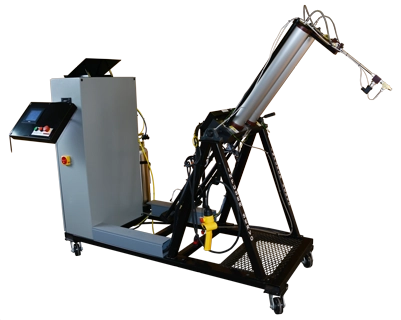

Infuser Servo®
Precise High Temperature Batch Injection System
The Infuser Servo® is a precise high temperature batch RTM injection system. Leading the industry with it's unmatched innovation and design in precision and control over the RTM/VARTM injection process. Onboard degassing and precise high temperature control makes the Infuser Servo® the perfect injector for HP-RTM/VARTM molds up to 4000cc per shot. JHM Technologies' Infusatrol injection software ensure an accurate injection process through automated pressure and flow rate settings. All backed by secure real-time data logging! Available in single (1C) and multiple component (2C) models.
Features
Infuser Servo® Features
- Onboard Degassing
- Once loaded each injection cylinder can be de-gassed (vacuum pulled through the lid) to eliminate any entrapped bubbles in the resin or hardener, providing a much higher level of void free laminate.
- Absolute Pressure and Flow Rate Controls
- Absolute pressure reads in millibars with zero millibars at perfect vacuum giving optimum resolution of pressure.
- Precise Servo Drives
- Servo driven flow, means precision control of flow rate and mix ratios.
Models
Infuser Servo® Models
Infuser Servo® 2C
Specification:
- Infusatrol injection software
- Dual servo driven cylinders
- 4 L. Capacity per cylinder
- Infinite injection ratio
- 5 Ft. Heated hose
- 15 Ft. Remote control
- 5 gal. Stainless steel solvent tank
- Variable solvent purge
- Configurable inputs for actual injection pressure and flow rate
- Closed loop PID control of injection flow rate
- 6 In. Backlit touch screen display
- Cavity vacuum monitoring—with confirmation prior to injection
- Compact automatic injection head
- Absolute electronic MPG injection pressure sensor
- Mounted on floor stand with industrial grade swivel wheels for easy movement
Infuser Servo® 1C
Specification:
- Infusatrol injection software
- Servo driven cylinders
- 4 L. Capacity per cylinder
- Infinite injection ratio
- 5 Ft. Heated hose
- 15 Ft. Remote control
- 5 gal. Stainless steel solvent tank
- Variable solvent purge
- Configurable inputs for actual injection pressure and flow rate
- Closed loop PID control of injection flow rate
- 6 In. Backlit touch screen display
- Cavity vacuum monitoring—with confirmation prior to injection
- Compact automatic injection head
- Absolute electronic MPG injection pressure sensor
- Mounted on floor stand with industrial grade swivel wheels for easy movement
Pricing & Leasing
Infuser Servo® Pricing and Leasing Details
- Buy Direct
-
The Infuser Servo® is available directly from JHM Technologies, Inc. Configured to your exact needs and built in Fenton, MI, USA.
Contact us today for your FREE quote on an Infuser Servo®. - Lease
- Contact us today for details on how you can lease the Infuser Servo®.
